Contactor/Fused Disconnect - w/cover control (BHCDX)

Cooling Tower Basin Heater Controllers

Contactor/Fused Disconnect with Cover Control

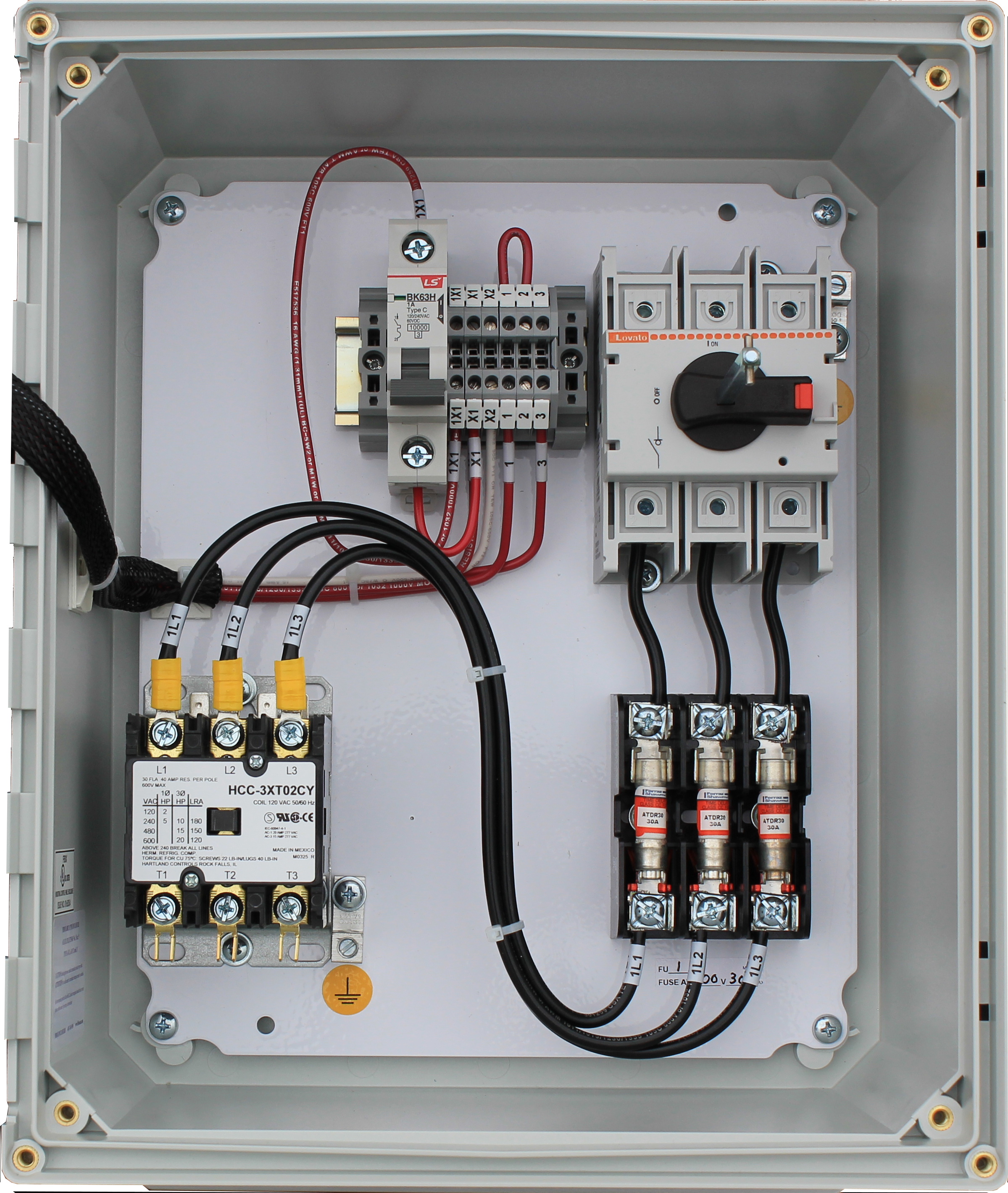

M-Tech Control’s Contactor/Fused Disconnect control panels with cover control offer dependable control of 1-2 basin heaters per contactor (up to 3 contactors). Our standard product is available in 30 – 60-amp configurations (up to 120A non stock), and offer 24VAC and 120VAC coils. Our panels are UL508a certified and assembled using high quality components. Each M-Tech basin heater panel is backed by our 5-year limited warranty.

Each Panel can be enclosed in your choice of NEMA 4 cold rolled steel, NEMA 4X stainless steel and NEMA 4X non-metallic enclosures.

View Our Product Catalog

Panel includes the following as standard:

  • Main disconnect
  • Through the door rotatory disconnect handle. Padlockable for lock out/tag out
  • Appropriately sized Fuse holder and Fuses CC Fuses 1-30A. or J Fuses 35-60A included
  • Available with 1 – 3 Magnetic Contactors (Recommend 1-2 Heaters per contactor)
  • Off/On Selector Switch (1 per contactor) Hand – Off – Auto Selector Switch available
  • Green Run Pilot light (1 per contactor)
  • Control fuse protection.
  • Note: This product requires a control voltage from a remote source. If a remote control voltage is not available, Select the BHCTD product which contains a control transformer.
  • Terminal blocks for customer interface.
  • Ground Lugs
  • NEMA 4/12 ANSI 61 painted cold rolled steel, NEMA 4X 304 Stainless Steel, or NEMA 4X non-metallic corrosion resistant enclosures are available. (316 S/S upon request)
  • All panels are UL listed for the United States and Canada cUL508A

Options

  • Replace Heater OFF/ON selector switch with a Hand/OFF/Auto selector switch
  • Auxiliary Dry Contact.
  • Float Switch.

We also offer custom configurations.

Please contact M-Tech for additional technical information and volume pricing.

The Heater current charts may assist in selecting the proper contactor arrangement. If you are unsure of the correct sizing, we can assist in the selection.

Note on incoming power wiring:

The main incoming power wire requirements are sized based on the total heater nameplate kW and voltage. Calculate the actual load on the heater contactor control panel (the total kW of all the heaters connected to it) or use the nameplate rating in determining the wire size required.

Calculate the amperage as follows:

Single Phase Amperage = Total kW x 1000

                                                 Voltage

Three Phase Amperage = Total kW x 1000

                                          Voltage x 1.732

The field supplied branch circuit disconnect switch and the branch circuit protective devices (fusing or circuit breaker) should be sized to carry at least 100% of the current calculated above.

three-phase-and-two-phase-contactor-chart
skucontactor qtyvoltagecoil voltageamp ratingenclosure typeenclosure sizeEstimated PriceQuick ShipQuote
BHCDX-1030-1FA11208V120VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-1FA21230/240V120VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-1FA31380V120VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-1FA41460/480V120VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-1FA51575V120VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-1FA91120V120VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-2030-1FA12208V120VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-1FA22230/240V120VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-1FA32380V120VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-1FA42460/480V120VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-1FA52575V120VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-1FA92120V120VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-3030-1FA13208V120VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-1FA23230/240V120VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-1FA33380V120VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-1FA43460/480V120VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-1FA53575V120VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-1FA93120V120VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-1030-2FA11208V24VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-2FA21230/240V24VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-2FA31380V24VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-2FA41460/480V24VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-2FA51575V24VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-1030-2FA91120V24VAC30ANon-Metallic12 x 10$462.14 Quick ShipAdd
BHCDX-2030-2FA12208V24VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-2FA22230/240V24VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-2FA32380V24VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-2FA42460/480V24VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-2FA52575V24VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-2030-2FA92120V24VAC30ANon-Metallic14 x 12$681.20 Quick ShipAdd
BHCDX-3030-2FA13208V24VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-2FA23230/240V24VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-2FA33380V24VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-2FA43460/480V24VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-2FA53575V24VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-3030-2FA93120V24VAC30ANon-Metallic16 x 14$941.60 Quick ShipAdd
BHCDX-1040-1FA11208V120VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-1FA21230/240V120VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-1FA31380V120VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-1FA41460/480V120VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-1FA51575V120VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-1FA91120V120VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-2040-1FA12208V120VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-1FA22230/240V120VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-1FA32380V120VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-1FA42460/480V120VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-1FA52575V120VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-1FA92120V120VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-3040-1FA13208V120VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-1FA23230/240V120VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-1FA33380V120VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-1FA43460/480V120VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-1FA53575V120VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-1FA93120V120VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-1040-2FA11208V24VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-2FA21230/240V24VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-2FA31380V24VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-2FA41460/480V24VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-2FA51575V24VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-1040-2FA91120V24VAC40ANon-Metallic12 x 10$535.69 Quick ShipAdd
BHCDX-2040-2FA12208V24VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-2FA22230/240V24VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-2FA32380V24VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-2FA42460/480V24VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-2FA52575V24VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-2040-2FA92120V24VAC40ANon-Metallic18 x 16$840.91 Quick ShipAdd
BHCDX-3040-2FA13208V24VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-2FA23230/240V24VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-2FA33380V24VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-2FA43460/480V24VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-2FA53575V24VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-3040-2FA93120V24VAC40ANon-Metallic24 x 24$1,447.45 Add
BHCDX-1050-1FA11208V120VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-1FA21230/240V120VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-1FA31380V120VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-1FA41460/480V120VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-1FA51575V120VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-1FA91120V120VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-2050-1FA12208V120VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-1FA22230/240V120VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-1FA32380V120VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-1FA42460/480V120VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-1FA52575V120VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-1FA92120V120VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-3050-1FA13208V120VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-1FA23230/240V120VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-1FA33380V120VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-1FA43460/480V120VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-1FA53575V120VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-1FA93120V120VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-1050-2FA11208V24VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-2FA21230/240V24VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-2FA31380V24VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-2FA41460/480V24VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-2FA51575V24VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-1050-2FA91120V24VAC50ANon-Metallic14 x 12$560.35 Quick ShipAdd
BHCDX-2050-2FA12208V24VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-2FA22230/240V24VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-2FA32380V24VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-2FA42460/480V24VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-2FA52575V24VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-2050-2FA92120V24VAC50ANon-Metallic18 x 16$865.73 Quick ShipAdd
BHCDX-3050-2FA13208V24VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-2FA23230/240V24VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-2FA33380V24VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-2FA43460/480V24VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-2FA53575V24VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-3050-2FA93120V24VAC50ANon-Metallic24 x 24$1,736.82 Add
BHCDX-1060-1FA11208V120VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-1FA21230/240V120VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-1FA31380V120VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-1FA41460/480V120VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-1FA51575V120VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-1FA91120V120VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-2060-1FA12208V120VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-1FA22230/240V120VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-1FA32380V120VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-1FA42460/480V120VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-1FA52575V120VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-1FA92120V120VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-1060-2FA11208V24VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-2FA21230/240V24VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-2FA31380V24VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-2FA41460/480V24VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-2FA51575V24VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-1060-2FA91120V24VAC60ANon-Metallic14 x 12$613.00 Quick ShipAdd
BHCDX-2060-2FA12208V24VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-2FA22230/240V24VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-2FA32380V24VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-2FA42460/480V24VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-2FA52575V24VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-2060-2FA92120V24VAC60ANon-Metallic18 x 16$1,055.19 Quick ShipAdd
BHCDX-1030-1CA11208V120VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-1CA21230/240V120VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-1CA31380V120VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-1CA41460/480V120VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-1CA51575V120VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-1CA91120V120VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-2030-1CA12208V120VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-1CA22230/240V120VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-1CA32380V120VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-1CA42460/480V120VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-1CA52575V120VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-1CA92120V120VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-3030-1CA13208V120VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-1CA23230/240V120VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-1CA33380V120VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-1CA43460/480V120VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-1CA53575V120VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-1CA93120V120VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-1030-2CA11208V24VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-2CA21230/240V24VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-2CA31380V24VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-2CA41460/480V24VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-2CA51575V24VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-1030-2CA91120V24VAC30AANSI 61 Grey Powder Coated Carbon Steel12 x 10$498.28 Add
BHCDX-2030-2CA12208V24VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-2CA22230/240V24VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-2CA32380V24VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-2CA42460/480V24VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-2CA52575V24VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-2030-2CA92120V24VAC30AANSI 61 Grey Powder Coated Carbon Steel14 x 12$728.13 Add
BHCDX-3030-2CA13208V24VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-2CA23230/240V24VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-2CA33380V24VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-2CA43460/480V24VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-2CA53575V24VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-3030-2CA93120V24VAC30AANSI 61 Grey Powder Coated Carbon Steel16 x 14$998.11 Add
BHCDX-1040-1CA11208V120VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-1CA21230/240V120VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-1CA31380V120VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-1CA41460/480V120VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-1CA51575V120VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-1CA91120V120VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-2040-1CA12208V120VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-1CA22230/240V120VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-1CA32380V120VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-1CA42460/480V120VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-1CA52575V120VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-1CA92120V120VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-3040-1CA13208V120VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-1CA23230/240V120VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-1CA33380V120VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-1CA43460/480V120VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-1CA53575V120VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-1CA93120V120VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-1040-2CA11208V24VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-2CA21230/240V24VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-2CA31380V24VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-2CA41460/480V24VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-2CA51575V24VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-1040-2CA91120V24VAC40AANSI 61 Grey Powder Coated Carbon Steel12 x 10$571.83 Add
BHCDX-2040-2CA12208V24VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-2CA22230/240V24VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-2CA32380V24VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-2CA42460/480V24VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-2CA52575V24VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-2040-2CA92120V24VAC40AANSI 61 Grey Powder Coated Carbon Steel20 X 16$967.03 Add
BHCDX-3040-2CA13208V24VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-2CA23230/240V24VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-2CA33380V24VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-2CA43460/480V24VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-2CA53575V24VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-3040-2CA93120V24VAC40AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,395.59 Add
BHCDX-1050-1CA11208V120VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-1CA21230/240V120VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-1CA31380V120VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-1CA41460/480V120VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-1CA51575V120VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-1CA91120V120VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-2050-1CA12208V120VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-1CA22230/240V120VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-1CA32380V120VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-1CA42460/480V120VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-1CA52575V120VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-1CA92120V120VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-3050-1CA13208V120VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-1CA23230/240V120VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-1CA33380V120VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-1CA43460/480V120VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-1CA53575V120VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-1CA93120V120VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-1050-2CA11208V24VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-2CA21230/240V24VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-2CA31380V24VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-2CA41460/480V24VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-2CA51575V24VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-1050-2CA91120V24VAC50AANSI 61 Grey Powder Coated Carbon Steel14 x 12$607.06 Add
BHCDX-2050-2CA12208V24VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-2CA22230/240V24VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-2CA32380V24VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-2CA42460/480V24VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-2CA52575V24VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-2050-2CA92120V24VAC50AANSI 61 Grey Powder Coated Carbon Steel20 X 16$991.85 Add
BHCDX-3050-2CA13208V24VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-2CA23230/240V24VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-2CA33380V24VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-2CA43460/480V24VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-2CA53575V24VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-3050-2CA93120V24VAC50AANSI 61 Grey Powder Coated Carbon Steel24 x 24$1,684.96 Add
BHCDX-1060-1CA11208V120VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-1CA21230/240V120VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-1CA31380V120VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-1CA41460/480V120VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-1CA51575V120VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-1CA91120V120VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-2060-1CA12208V120VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-1CA22230/240V120VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-1CA32380V120VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-1CA42460/480V120VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-1CA52575V120VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-1CA92120V120VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-3060-1CA13208V120VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-1CA23230/240V120VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-1CA33380V120VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-1CA43460/480V120VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-1CA53575V120VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-1CA93120V120VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-1060-2CA11208V24VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-2CA21230/240V24VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-2CA31380V24VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-2CA41460/480V24VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-2CA51575V24VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-1060-2CA91120V24VAC60AANSI 61 Grey Powder Coated Carbon Steel14 x 12$659.93 Add
BHCDX-2060-2CA12208V24VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-2CA22230/240V24VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-2CA32380V24VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-2CA42460/480V24VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-2CA52575V24VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-2060-2CA92120V24VAC60AANSI 61 Grey Powder Coated Carbon Steel20 X 16$1,181.31 Add
BHCDX-3060-2CA13208V24VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-2CA23230/240V24VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-2CA33380V24VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-2CA43460/480V24VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-2CA53575V24VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-3060-2CA93120V24VAC60AANSI 61 Grey Powder Coated Carbon Steel24 x 30$1,783.41 Add
BHCDX-1030-1SA11208V120VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-1SA21230/240V120VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-1SA31380V120VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-1SA41460/480V120VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-1SA51575V120VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-1SA91120V120VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-2030-1SA12208V120VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-1SA22230/240V120VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-1SA32380V120VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-1SA42460/480V120VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-1SA52575V120VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-1SA92120V120VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-3030-1SA13208V120VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-1SA23230/240V120VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-1SA33380V120VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-1SA43460/480V120VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-1SA53575V120VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-1SA93120V120VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-1030-2SA11208V24VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-2SA21230/240V24VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-2SA31380V24VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-2SA41460/480V24VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-2SA51575V24VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-1030-2SA91120V24VAC30AStainless Steel12 x 10$695.99 Add
BHCDX-2030-2SA12208V24VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-2SA22230/240V24VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-2SA32380V24VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-2SA42460/480V24VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-2SA52575V24VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-2030-2SA92120V24VAC30AStainless Steel14 x 12$943.95 Add
BHCDX-3030-2SA13208V24VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-2SA23230/240V24VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-2SA33380V24VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-2SA43460/480V24VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-2SA53575V24VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-3030-2SA93120V24VAC30AStainless Steel16 x 14$1,253.38 Add
BHCDX-1040-1SA11208V120VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-1SA21230/240V120VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-1SA31380V120VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-1SA41460/480V120VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-1SA51575V120VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-1SA91120V120VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-2040-1SA12208V120VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-1SA22230/240V120VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-1SA32380V120VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-1SA42460/480V120VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-1SA52575V120VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-1SA92120V120VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-3040-1SA13208V120VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-1SA23230/240V120VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-1SA33380V120VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-1SA43460/480V120VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-1SA53575V120VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-1SA93120V120VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-1040-2SA11208V24VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-2SA21230/240V24VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-2SA31380V24VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-2SA41460/480V24VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-2SA51575V24VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-1040-2SA91120V24VAC40AStainless Steel12 x 10$769.54 Add
BHCDX-2040-2SA12208V24VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-2SA22230/240V24VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-2SA32380V24VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-2SA42460/480V24VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-2SA52575V24VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-2040-2SA92120V24VAC40AStainless Steel20 x 16$1,294.15 Add
BHCDX-3040-2SA13208V24VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-2SA23230/240V24VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-2SA33380V24VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-2SA43460/480V24VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-2SA53575V24VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-3040-2SA93120V24VAC40AStainless Steel24 x 24$1,846.33 Add
BHCDX-1050-1SA11208V120VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-1SA21230/240V120VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-1SA31380V120VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-1SA41460/480V120VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-1SA51575V120VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-1SA91120V120VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-2050-1SA12208V120VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-1SA22230/240V120VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-1SA32380V120VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-1SA42460/480V120VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-1SA52575V120VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-1SA92120V120VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-3050-1SA13208V120VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-1SA23230/240V120VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-1SA33380V120VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-1SA43460/480V120VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-1SA53575V120VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-1SA93120V120VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-1050-2SA11208V24VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-2SA21230/240V24VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-2SA31380V24VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-2SA41460/480V24VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-2SA51575V24VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-1050-2SA91120V24VAC50AStainless Steel14 x 12$823.10 Add
BHCDX-2050-2SA12208V24VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-2SA22230/240V24VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-2SA32380V24VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-2SA42460/480V24VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-2SA52575V24VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-2050-2SA92120V24VAC50AStainless Steel20 x 16$1,318.97 Add
BHCDX-3050-2SA13208V24VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-2SA23230/240V24VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-2SA33380V24VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-2SA43460/480V24VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-2SA53575V24VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-3050-2SA93120V24VAC50AStainless Steel24 x 24$2,135.70 Add
BHCDX-1060-1SA11208V120VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-1SA21230/240V120VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-1SA31380V120VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-1SA41460/480V120VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-1SA51575V120VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-1SA91120V120VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-2060-1SA12208V120VAC60AStainless Steel18 x 16$1,508.43 Add
BHCDX-2060-1SA22230/240V120VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-1SA32380V120VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-1SA42460/480V120VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-1SA52575V120VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-1SA92120V120VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-3060-1SA13208V120VAC60AStainless Steel20 x 16$2,302.74 Add
BHCDX-3060-1SA23230/240V120VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-1SA33380V120VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-1SA43460/480V120VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-1SA53575V120VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-1SA93120V120VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-1060-2SA11208V24VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-2SA21230/240V24VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-2SA31380V24VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-2SA41460/480V24VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-2SA51575V24VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-1060-2SA91120V24VAC60AStainless Steel14 x 12$875.75 Add
BHCDX-2060-2SA12208V24VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-2SA22230/240V24VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-2SA32380V24VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-2SA42460/480V24VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-2SA52575V24VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-2060-2SA92120V24VAC60AStainless Steel20 x 16$1,508.43 Add
BHCDX-3060-2SA13208V24VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-2SA23230/240V24VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-2SA33380V24VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-2SA43460/480V24VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-2SA53575V24VAC60AStainless Steel24 x 30$2,302.74 Add
BHCDX-3060-2SA93120V24VAC60AStainless Steel24 x 30$2,302.74 Add

Contact Us

Contact our team of experts today for a customized quote!

File size is limited to 5mb per file.
